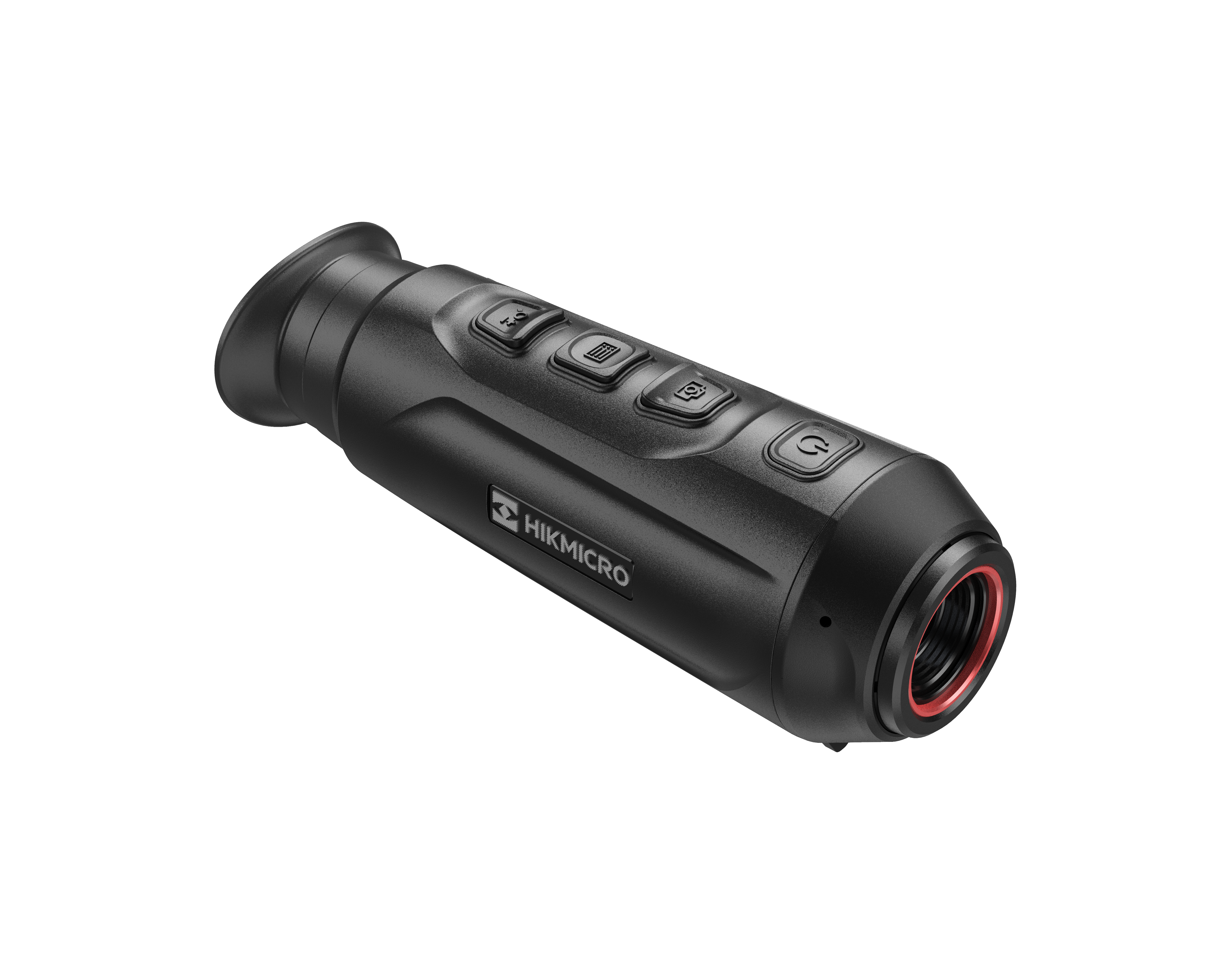

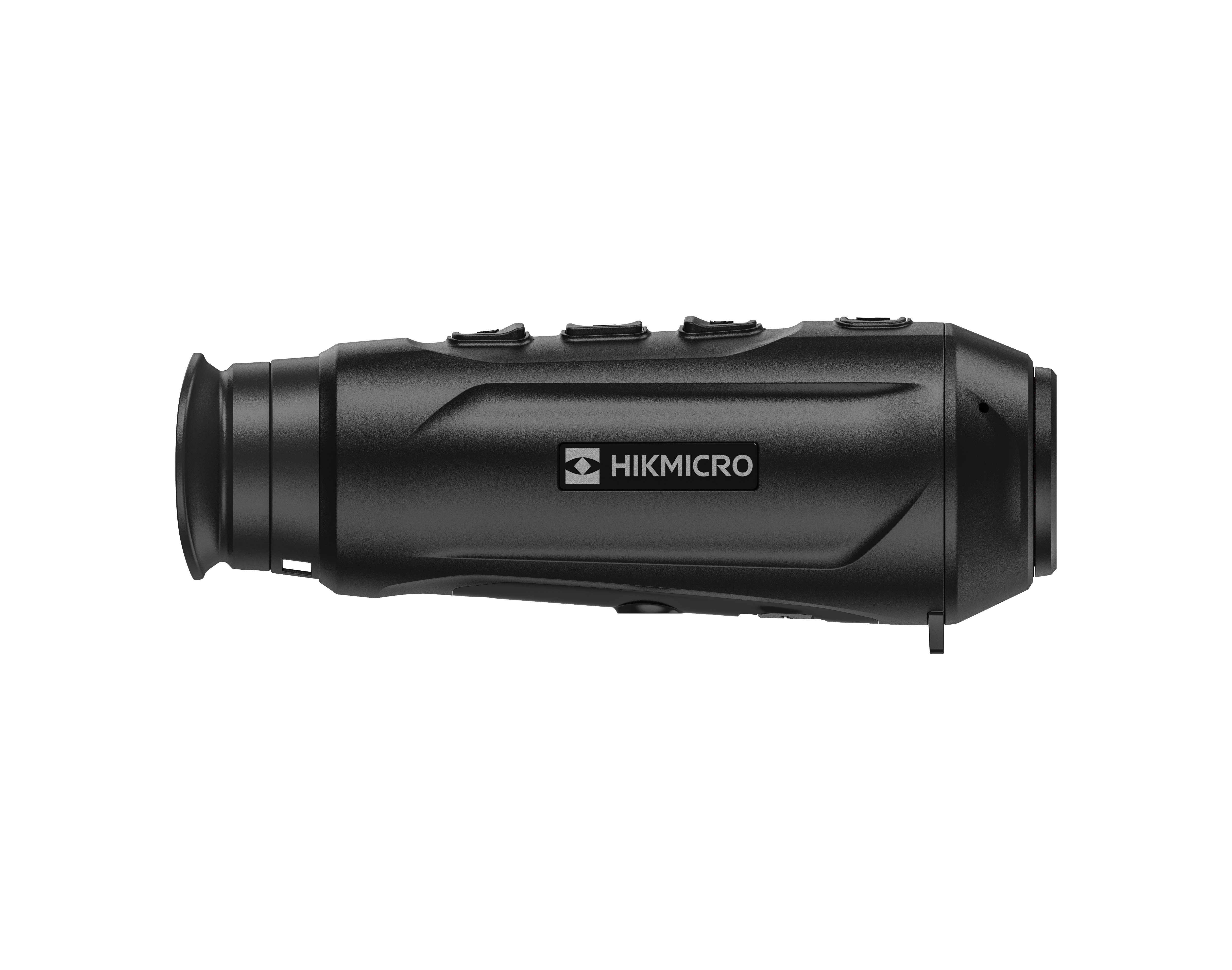

HIKMicro Lynx Pro Thermal Telescope - 19mm
HIKMICRO LYNX PRO 19mm 35mK Smart Thermal Monocular. The HIKMICRO LYNX PRO 19mm bridges the gap between the 15mm and 35mm models by introducing many of the features found on the premium models into a more cost-effective package. The Lynx Pro is built on the same compact chassis as the popular, pocket-sized 15mm model from HIK Micro but with the key additional feature of a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.
The Lynx Pro is the first Thermal Monocular from HIKMICRO to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target) whilst also helping to reduce the cost of the unit.
HIKMICRO has also included the large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
You will find all of the usual HIKMICRO features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smart phone.
35mK NETD Rating - one of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
Objective Focus Ring - precisely adjust the image to optimise your view over a wide range of distances.
384x288px 12µm sensor - this change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target).
1280 x 960px LCOS Screen - featuring the same large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
Hot Track - activate Hot Tracking and your Lynx Pro will highlight the hottest spot detected in the current frame with a green crosshair.
4 Colour Profiles
8x Digital Magnification
T-Vision App compatibility - Connect, Stream and Record to your Smart Phone.
Sensor: 384×288px @ 12µm
Objective Lens: 19mm
Detection Range (Human 1.8 x 0.5m): 897m
Type: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels: 384 × 288 px
Pixel pitch, µm: 12µm
Frame rate, Hz: 50 Hz
Objective lens: F1.0
Magnification (Optical): 1.86x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view : 13.8° × 10.4° (H × V)
Type: 10 mm LCOS
Resolution, Pixels: 1280 x 960
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Build in memory, Gb: 8 Gb
Hot Tracking : YES
WiFI hot spot: YES
T-Vision App support: YES
Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm: 171 mm × 61 mm × 57 mm
Weight, kg: 0.31 kg
Operating time on battery (WiFi & Hot tracking disabled): 7.5 hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%
