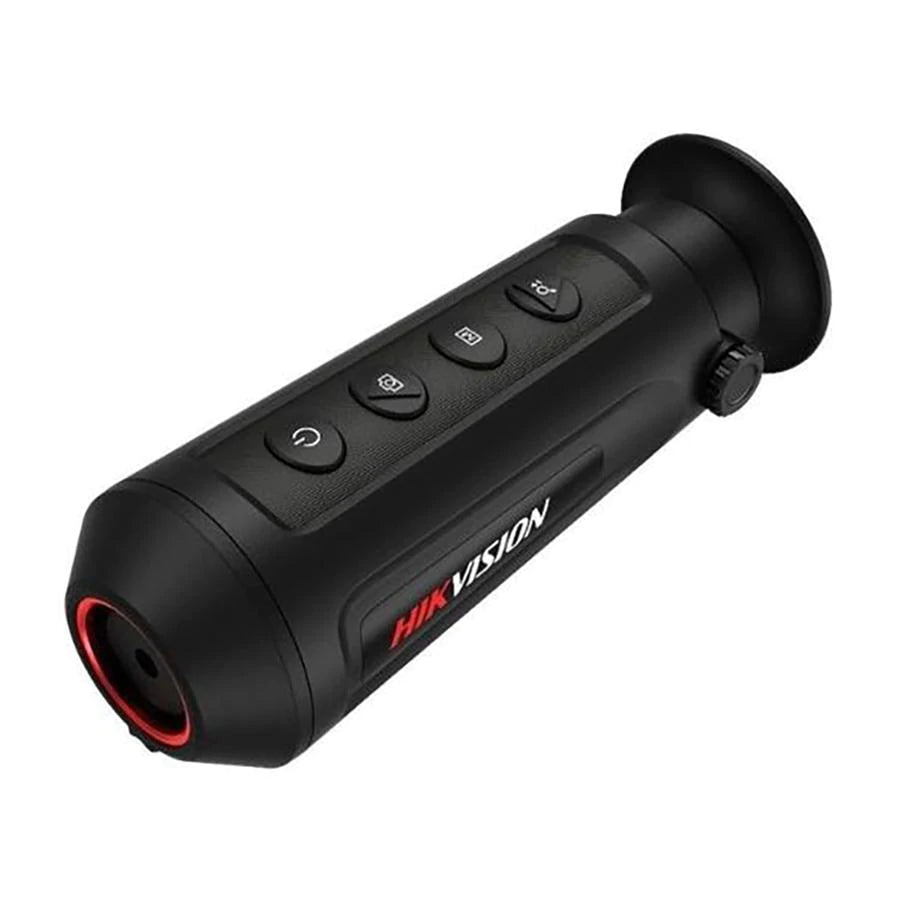

HIKMICRO Thermal Telescope - 10mm
HIKMICRO LYNX PRO 10mm (256x192) Thermal Imager. Joining the range of HIKMICRO thermal monoculars – the Lynx LE10 is focused on delivering high-level thermal performance at an entry-level price point. At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.
The Lynx 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your shooting experience.
The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them
Specifications
MAIN
Sensor: 256x192px @ 12µm
Objective Lens (Focal Length): 10 mm
Detection Range (Human 1.8m x 0.5m): 458 m
SENSOR
Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 256 x 192 PX
Pixel pitch, um: 12µm
Frame rate, Hz: 25 Hz
NETD: <35mK
OPTICS
Objective lens: F1.0
Magnification (optical): 1x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view: 18.00° × 13.55° (H × V)°
DISPLAY
Type: 5.08mm, LCOS
Resolution, Pixels: 720 × 540
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm: 158 mm x 61 mm x 57 mm
Weight, Kg: 0.26 kg
POWER SUPPLY
Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%
Warranty
Main Unit: 3 Years
Battery: 2 Year
|
