HIKMicro

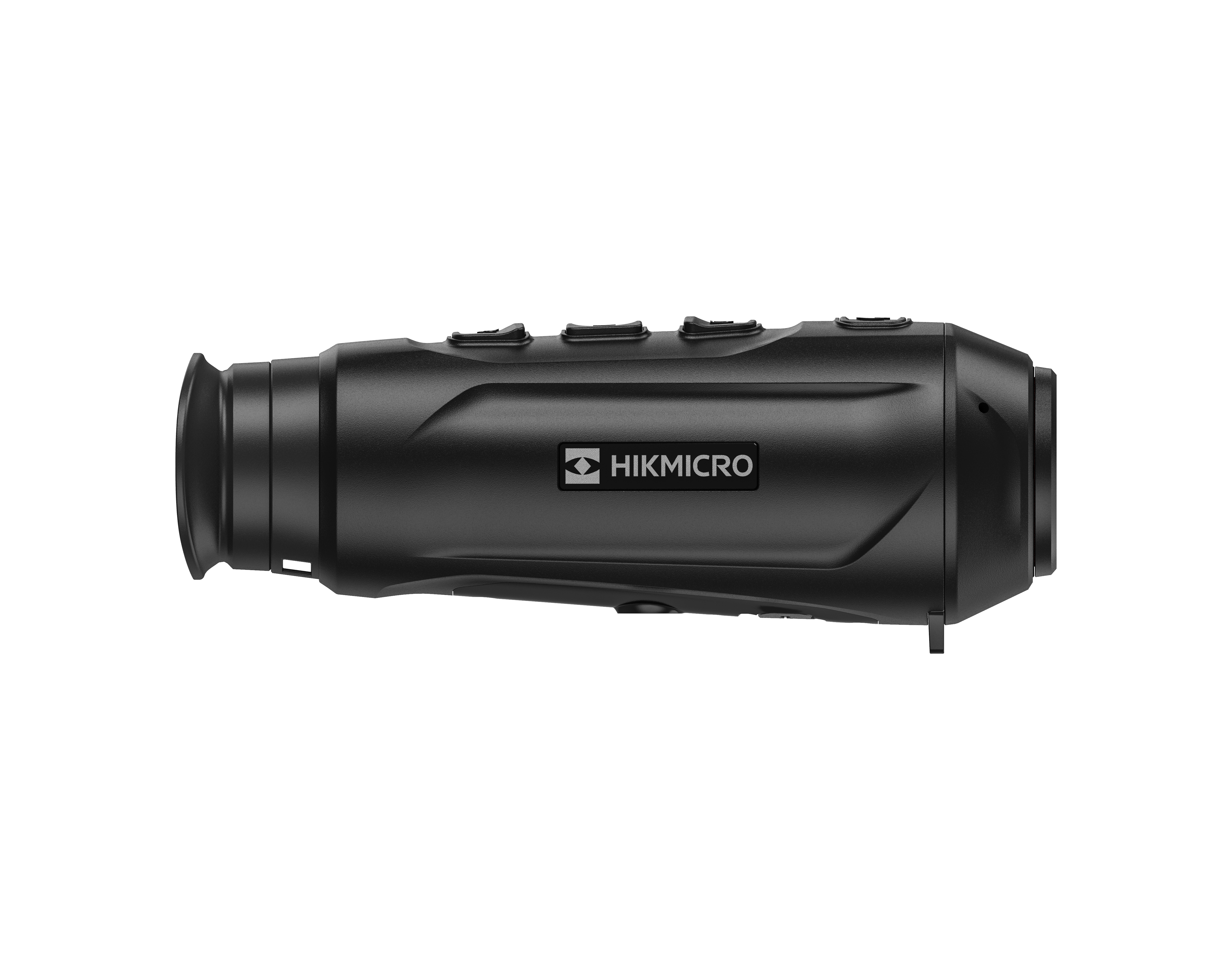

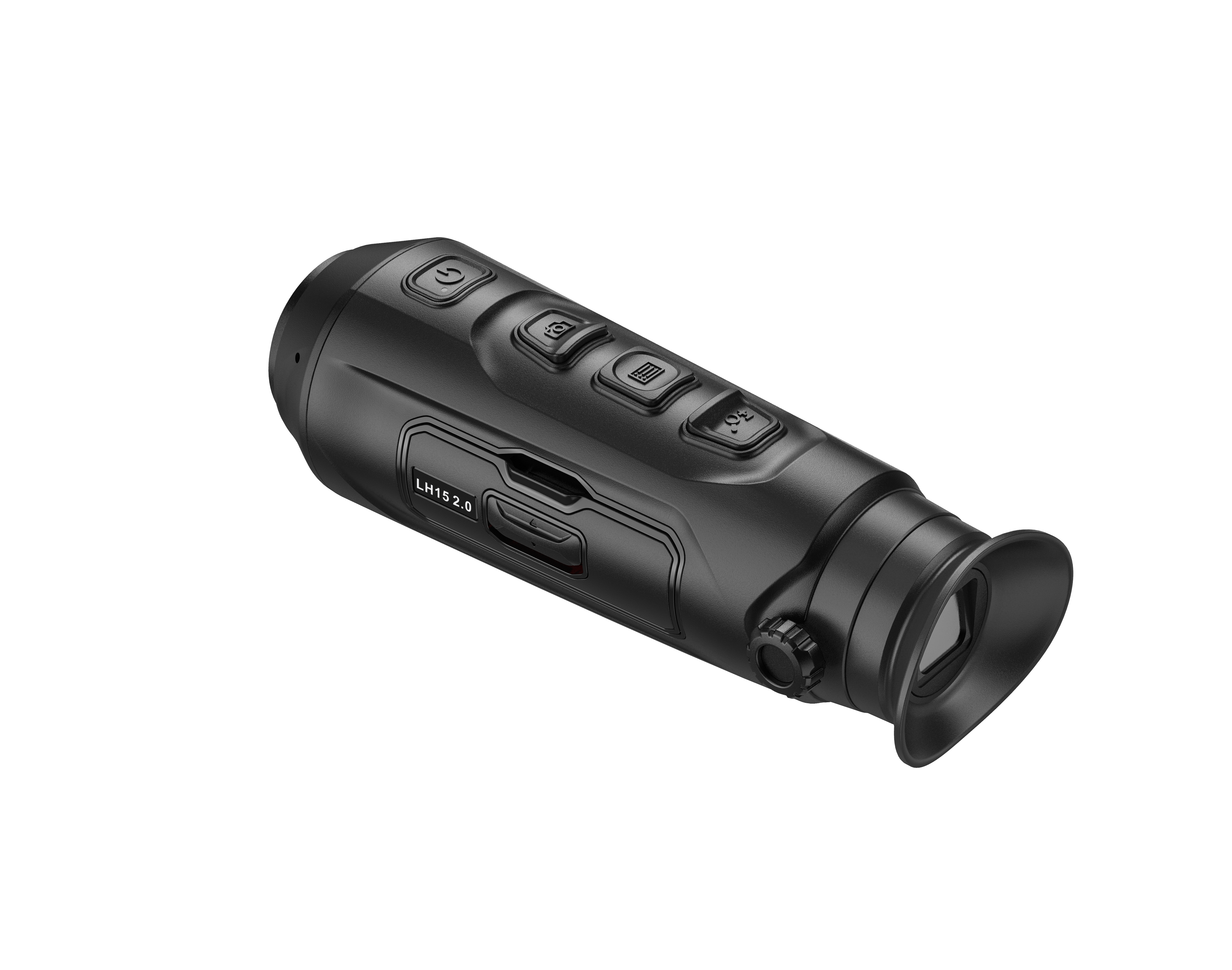

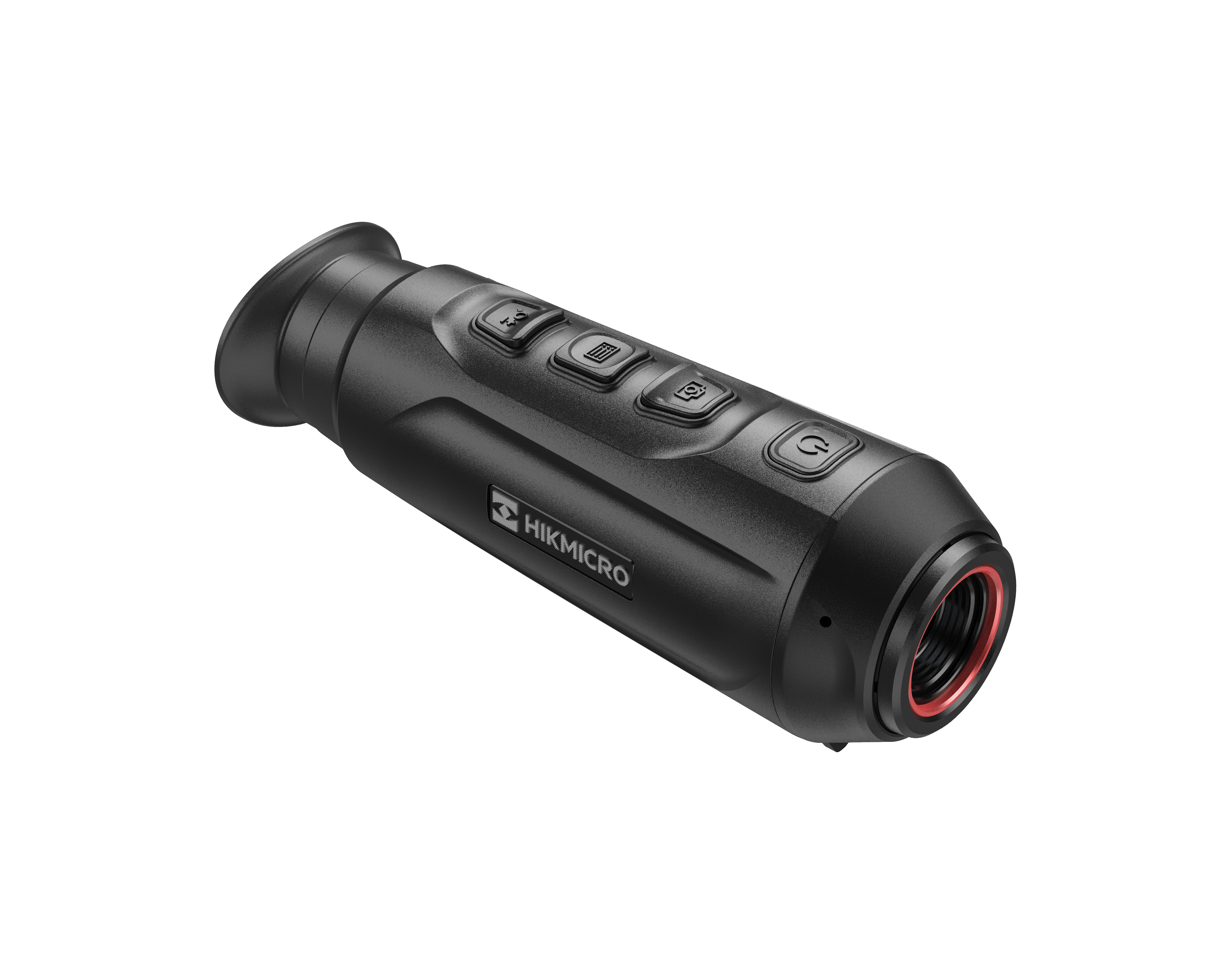

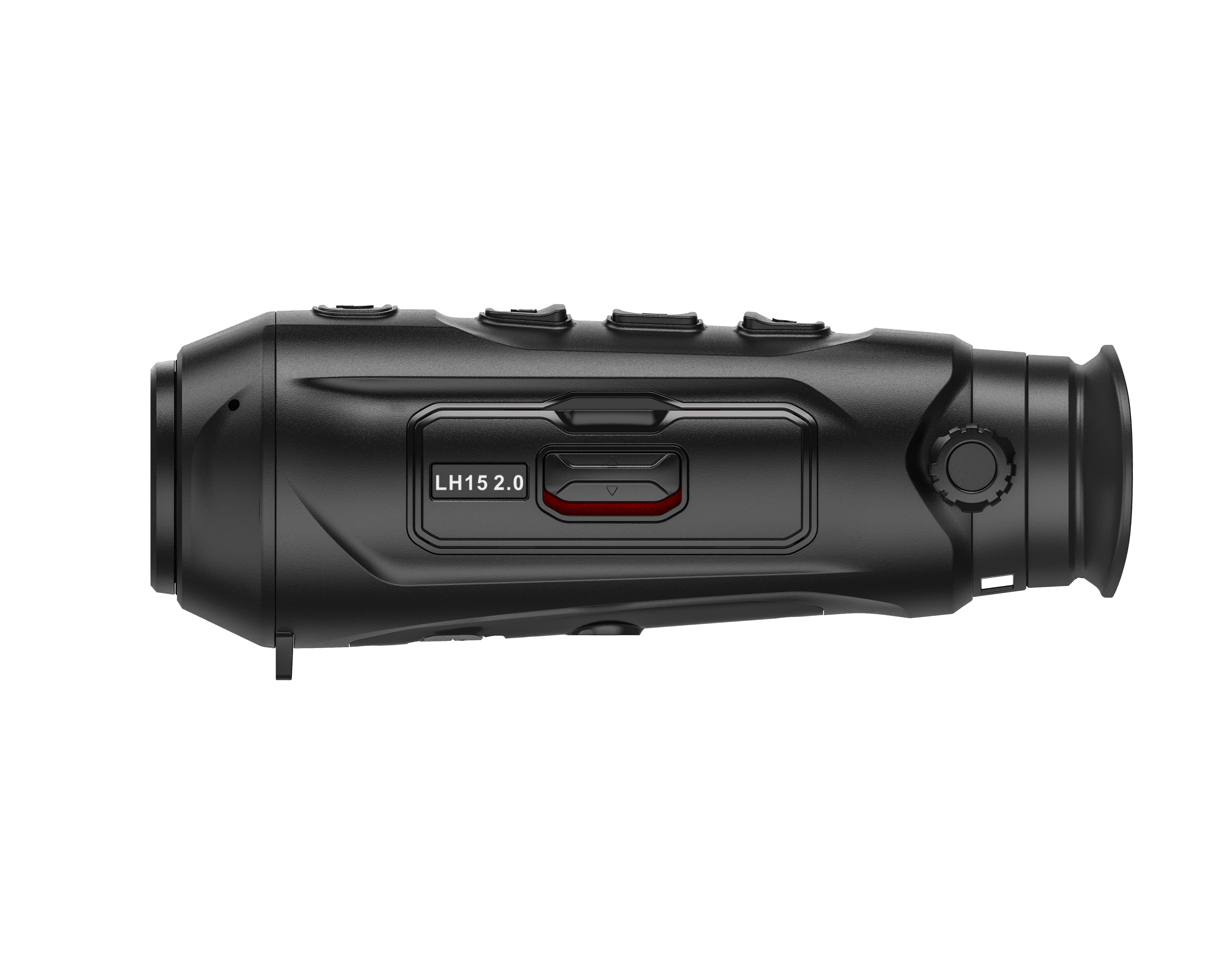

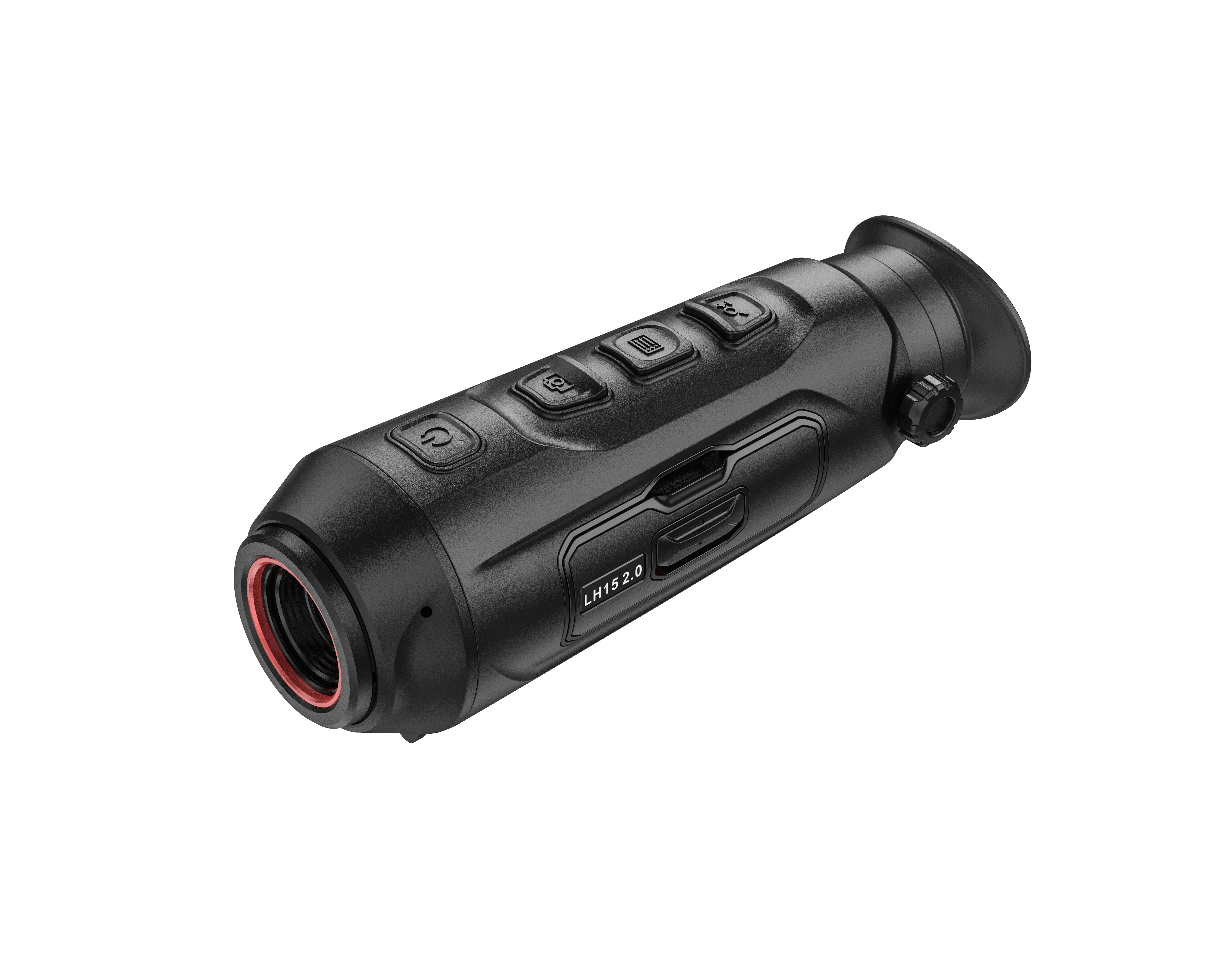

HIKMicro Lynx Pro Thermal Telescope - 15mm

£949
HIKMICRO LYNX PRO 15mm (384x288) Thermal Imager. Introducing the Lynx Pro 15mm. Building on the success of the Lynx 15mm the new (2021) Pro model introduces a few subtle improvements to boost the performance of the best-selling, entry-level Thermal Monocular in the HIKMICRO range.

The Lynx Pro 15mm shares the larger 10mm screen that is found in the premium 19mm and 25mm Lynx Pro models. This gives you a large display that is easy to view and gives you the best view of your surroundings.

The Lynx Pro also uses the latest 384x288px, 12µm, sub-35mK, NETD Thermal Sensor from HIKMICRO. This highly accurate sensor delivers a detailed image while the move from 17µm to 12µm boosts the optical magnification up to 1.5x. This extra magnification is useful for identifying small heat sources and adds detail while retaining the wide Field-of-View which is useful for quickly scanning a wide area.

Outside of these changes, the Lynx Pro 15mm retains all of the features that made the original Lynx 15mm so popular! WiFi to connect to the T-Vision App and stream, record and control your monocular, 4 colour palettes, IP67 rated, and access to the HIKMICRO UK service centre should your Monocular develop a fault within its 3 year Warranty period.

Specifications

MAIN

Sensor: 384×288px @ 12µm
Objective Lens (Focal Length): 15 mm
Detection Range (Human 1.8m x 0.5m): 708m
SENSOR

Type: VOx Uncooled Focal
Plane: Arrays
Resolution, pixels: 384 × 288 px
Pixel pitch, um: 12µm
Frame rate, Hz: 50 Hz
NETD: <35mK
OPTICS

Objective lens: F1.0
Magnification (optical): 1.47x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view: 17.5° × 13.1° (H × V)
DISPLAY

Type: 10 mm LCOS
Resolution, Pixels: 1280 x 960
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND

Build in memory, Gb 8 Gb
ADDITIONAL FEATURES

Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL

Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE

Dimensions, mm: 158 mm x 61 mm x 57 mm
Weight, Kg: 0.29 kg
POWER SUPPLY

Operating time on battery (WIFI & Hot tracking disabled): 7.5 hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%
